Layering Flood Lights for Driveway Safety and Style

Ever wonder why your driveway never looks quite right at night, either too dark to feel secure or so bright it flattens everything around it? If you dim your flood light to create a softer, more welcoming feel, the shadows grow deep and the security benefit fades. But crank up the brightness, and the edges of your yard glow like a lunar landing site.

The issue isn’t usually the fixture itself, but rather the way the light is used. A single flood light, no matter how high-powered, softens quickly toward the edges. This results in darkness at the hardscape edges and shadows behind anything in the driveway. The solution is to layer your lighting. You can use one central, high-lumen flood light to cover the main surface of the driveway, then add smaller flood lights on either side to soften the edges and bring a sense of depth where the driveway meets the yard. With a bit of aiming control and thoughtful positioning, you can get a driveway that is not just secure but also evenly lit and far more appealing.

Primary Flood Light: Full Driveway Coverage

Since the main goal of any flood light setup is to deter intruders, we can start with the centerpiece of system: one high-output flood light, 10,000-12,000 lumens in brightness, mounted above the center of the garage, about nine to twelve feet high. A 90-watt LED is a great choice here. Aim it straight out with a slight downward tilt, just enough to cast a wide 120-degree beam across the full length of the driveway. This will give you the core security coverage, from the garage all the way to the curb.

With the length covered, you can now turn bolstering with the width. To deal with light fade around the edges, the second layer of lighting comes in. You can think of this process as painting with light: the second layer does not compete with the main beam, but instead reinforces the edges where the main beam starts to fall off.

Side Flood Lights: Softening Transitions

To complement our central security light, mount smaller 15W flood lights at either corner of the garage or nearby side walls. Position them outward from the center light and aim diagonally across the driveway, with a modest downward tilt. The role of the side flood lights is to fill in the dimmer zones near the borders of the pavement and behind driveway objects. But in addition to helping driveway security, they also have a great aesthetic effect.

Because they are lower in intensity and aimed at a softer angle, the side flood lights subtly guide the eye through transition zones where the driveway ends and the yard begins. Instead of cutting off abruptly at the edge of the concrete or asphalt, the light gently fades into the adjacent zone. The result is a soft perimeter glow that is both functional and still warmly inviting.

Why Layered Flood Lights Work for Driveways

Layering lights helps correct many of the shortcomings of single-source lighting. The overlap between the main center flood light and the helper side floods evens out illumination across the entire width of the driveway, removing the patchiness that comes from diffusion along the beam edges. Shadows that typically form behind cars are softened, thanks to the angled side beams reaching across the blind zones. Most noticeably, the area where driveway meets landscape doesn’t vanish into blackness or get drowned out in white light. Instead, it is gently defined, making the outdoor space feel both intentional and cohesive.

Tips for Getting It Just Right

• Choose a neutral white 4000K or Cool White 5000K color temperature for the primary flood light. For your side lights, go with a slightly warmer 3000K for a softer contrast toward the edges.
• Use the knuckle mount adjustment to tilt side floods downward and outward. Aim them to brush across the edge of the driveway and just touch the surrounding lawn or beds.
• Take advantage of dimmable drivers. Keep side floods at lower brightness to maintain a balanced look, or dial them up slightly if your driveway is wide or adjacent to shadow-prone areas.

Driveway Security Flood Light

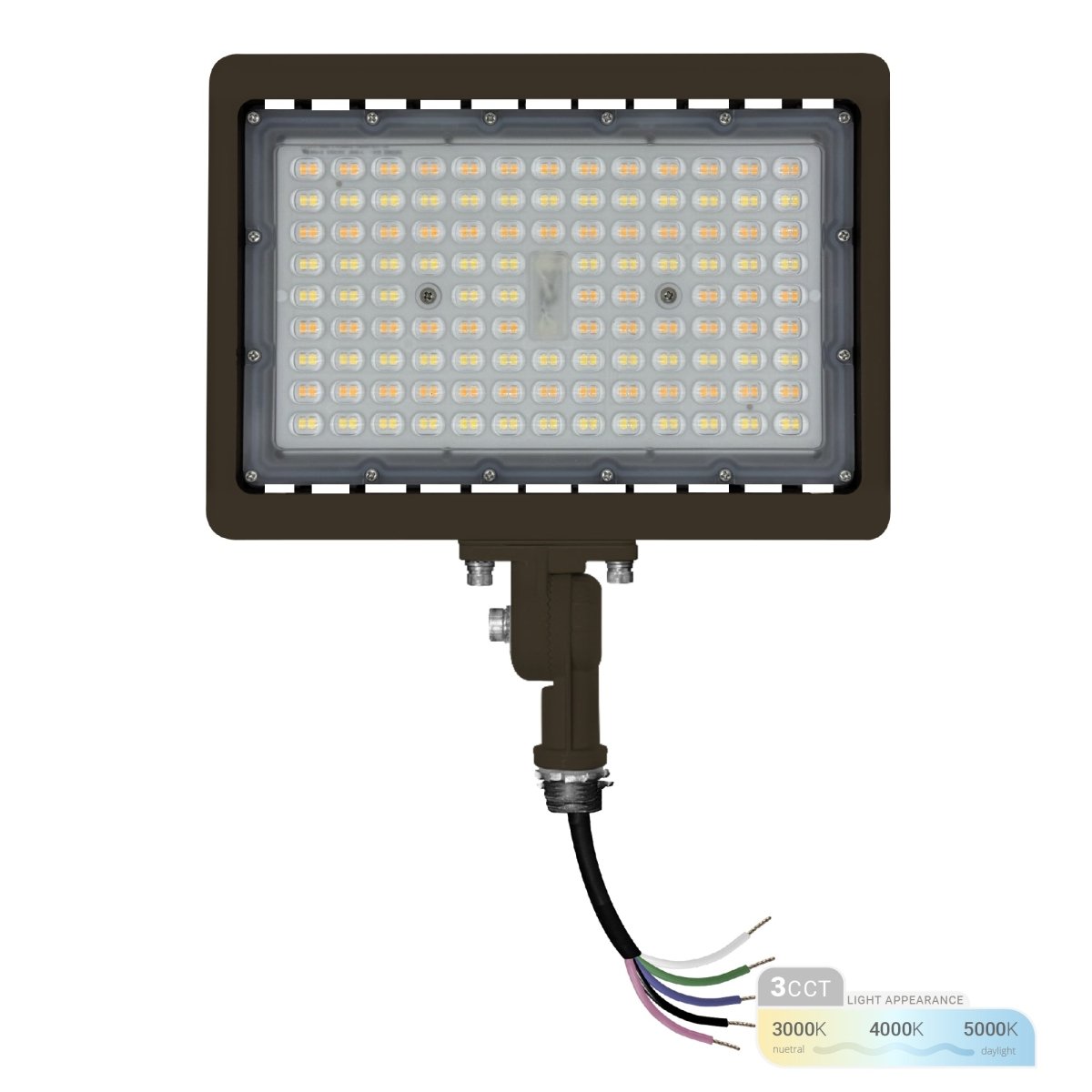

NuWatt 90W LED Flood Light - 3CCT, 12600LM, Dimmable

$99.99

★★★★★

Super bright security light ideal for full driveway coverage. Wide 120° beam spread and 12600 lumen output deter potential intruders.

View Product

Driveway Edge Accent Light

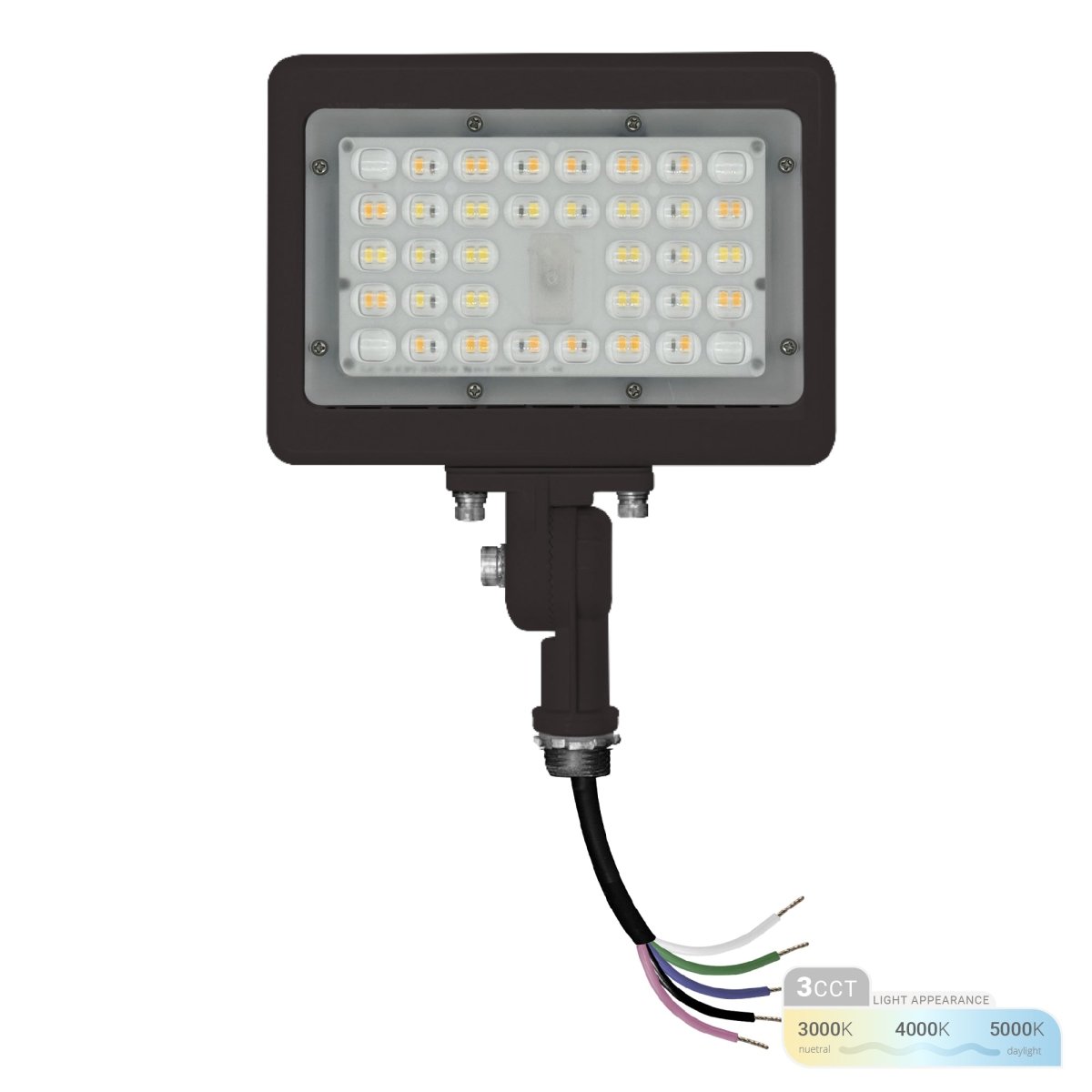

NuWatt 15W LED Flood Light - Swivel Knuckle Mount

$54.99

★★★★★

Low-wattage accent flood light complements the main security fixture. Fills in shadows and softly defines driveway borders.

View Product

Layer Driveway Lighting With NuWatt

With their great flexibility, NuWatt flood lights are the perfect way to build this type of layered setup. You get three selectable color temperatures — 3000K, 4000K, and 5000K, so you can use them for main lighting and for transitions. All models support 0–10V dimming, so you can dial brightness exactly to the level you need. The knuckle mount design allows 180 degree vertical and horizontal range of motion, making it easy to overlap beams only at the edges where needed. NuWatt flood lights operate on 120 to 277 volts and are available in white or bronze finishes to match your driveway style.

Whether you're installing one powerful fixture or coordinating multiple sizes, NuWatt gives you everything you need to create a driveway that is secure, balanced, and beautifully lit from edge to edge.
